SABFOIL RAZOR PRO 76775 | HYDROFOIL SET
76775KRP 套装
Sabfoil Razor Pro 76775 | Hydrofoil Set
COMPOSITION
- M76P - WRP775 - S325/PF,S380/PF - F652P - CP02K/Ti
- Bag and Titanium Q02K included

- Range Razor
- Recommended for Prone Surf - Downwind - Fast Downwind - Fast Freeride - Surf - Freeride
- Low End Speed 13 - 15 kn
- Top End Speed (average 75kg user) 28 - 30 kn
The Razor PRO / Piuma 76775KRP is our most radical surf foil kit, meant for those riders who want to feel at one with the ocean while surfing very steep waves, but who still like to enjoy a smoother ride in medium-height waves.
The Razor PRO 775 front wing is designed to maximize your performance in the waves and to be able to ride faster downwind, while handling any acceleration. You'll experience lightning-fast response and tighter turns, while maintaining stability and drive even during the most radical tip breaches or the return from wave leap to base.
Piuma masts are the result of many hours of prototyping which will boost your performance to the highest possible level in any field of use. Designed to minimize drag while having the best ratio stiffness/torsion/weight in our line, the Piuma mast is a unique blend of unidirectional, plain, and multiaxial high modulus carbon fiber of different weights combined with an extremely light core. In this kit, you will find the M76P, our shortest and most radical surf mast.
Not only are the masts lighter, but so are the fuselages: the new Piuma line includes several extremely lightweight and stylish fuselage models designed to offer maximum performance and a feeling of freedom while surfing. Here we propose the F652P model, our recommended standard for everyone who wants to have a great surfing experience. If you want something more radical, take a look at F602P.
This foil set is accompanied by a pair of stabilizers that will allow you to choose between engaging waves with the extreme maneuverability of the S325/PF, or carving in full control with the accentuated drive and greater surface area of the S380/PF.
Every piece is delivered with SAB Pro Finish, and thus hand sanded to achieve a matte surface with 0-thickness graphics, for an elegant Made in Italy product with maximum performance.
To top it off… Titanium. Piuma masts come with titanium components, including mast bushings, plate metal parts, and an updated Quick Release System Module, improved not only in materials but also in design to ensure maximum lightness, functionality, and resistance to corrosion and wear.
***Parts made of high-modulus carbon are super stiff and high-performing, but for that reason, they are also very fragile and susceptible to impacts. FOR THIS REASON, THE PIUMA SERIES IS NOT SUITABLE FOR HARD JUMPS AND FREESTYLE, AND ITS USE FOR THESE KINDS OF ACTIVITIES CAN BE DANGEROUS, AND SO NOT ALLOWED OR COVERED BY WARRANTY.

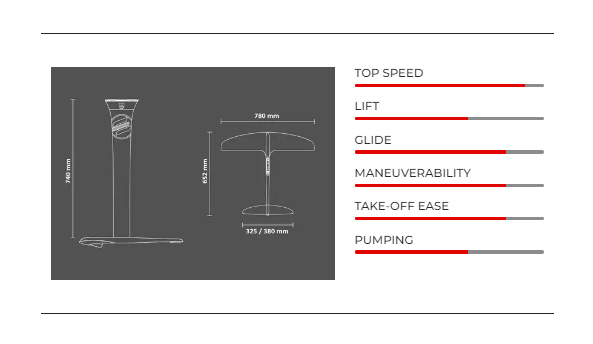

| Front Wing - Span | 780 mm |
|---|---|
| Front Wing - Surface | 631 cm2 |
| Front Wing - Volume | 543 cm3 |
| Front Wing - Aspect Ratio | 9.64 |
| Front Wing - Root Chord | 100 mm |
| Front Wing - Maximum Thickness | 15.25 mm |
| Stabilizer - Span | 325 mm - 380 mm |
| Stabilizer - Surface | 155 cm2 - 180 cm2 |
| Stabilizer - Volume | 61 cm3 - 73 cm3 |
| Stabilizer - Aspect Ratio | 7.05 - 8.10 |
| Stabilizer - Root Chord | 85.9 mm - 60.1 mm |
| Stabilizer - Maximum Thickness | 6.4 mm - 6.7 mm |
| Fuselage - Length | 652 mm |
| Mast - Height | 740 mm |
| Mast - Board Connection | Carbon Plate |
| Foil Set - Weight (ca.) | 2.9 kg |
CONTENT
- Sabfoil 76 Piuma R6 | Hydrofoil Mast x 1 M76P
- Sabfoil Razor PRO 775 | T6 Hydrofoil Front Wing x 1 WRP775
- Sabfoil Flat 325 Pro Finish | Hydrofoil Stabilizer x 1 S325/PF
- Sabfoil Gullwing 380 Pro Finish | Hydrofoil Stabilizer x 1 S380/PF
- Fuselage Piuma 652 T6/R6 x 1 F652P
- Sabfoil Carbon Rail Plate with Titanium Inserts x 1 CP02K/Ti
- Hardware Kit WR680/WR780/WR820/WR880/WR980 x 1 MH161
- Hardware Kit S325/S380/S425/S430/S450/S480/S483 x 2 MH108
- Hardware Kit F602P/F652P/W679 x 1 MH109
- Sabfoil Hydrofoil Bag L x 1 MA008
