2023 Fanatic Falcon Foil TE

Our dedicated performance foil board Falcon Foil is designed not only to get you up and foiling in the lightest winds, but also to give you maximum control of a high-powered foil around a racecourse.

For 2023 we will offer four new high end completely redesigned foil concept boards:  140l for high-end foil slalom in strong winds, 170l for free slalom & lighter riders and women (a smaller copy of the 180), a 180l PWA World Cup Edition model, and the 190l IFCA/FW Class course racing edition. All four sizes are 100% build for competition with foil race sails to gain every ounce of performance and control around the slalom course.

The wide tail and parallel rails give a very balanced stance out on the rail, which is crucial for control when foiling at top speed – whether you are hiking upwind or reaching.

The optimized stance for use with large race sails makes sure you can effectively drive the foil hard to gain every ounce of performance, while the nose has bevelled rails and vee to absorb those occasional touchdowns without slowing down.

The Falcon Foil 170 comes additionally in our budget friendly BXF technology.

FEATURES

100% FOILING 100% optimised for competitions with foil race sails to gain every ounce of performance and control around the race course	NEW AIRFLOW CONCEPT Through our CAD design process we implemented the latest CFD Computer aerodynamic analyzation for optimized airflow resulting in less drag and higher top-speed.
RECESSED MASTFOOT Recessed mastfoot area, keeps the rig connection low and boosts control	SMOOTH TOUCH-DOWN Forgiving optimized scoop rocker line, plenty of V in the nose section and the specialized extended tail cut-outs make tacking and gybing more forgiving
TRIM & STANCE New optimized Trim & Stance for better balance and control	CUT OUTS Specialized extended tail cut-out design for best racing performance and effortless acceleration after touchdown
FOOTPAD Grippy and shock absorbing dual density diamond grooving footpads	PREMIUM FOOTSTRAPS Comfortable and easy to adjust Fanatic Premium Footstraps

SPECIFICATION

TECHNOLOGY

FULL BIAX CARBON SANDWICH LIGHT FINISH (FULL BXC): FALCON FOIL TE 140 / 170 / 180 / 190

1. Light finish and weight saving graphics
2. Biax Carbon layer
3. Biax Carbon heel force patch
4. High density PVC sandwich core (low density in nose)
5. Biax Carbon reinforcement
6. Biax Carbon reinforcement layer
7. Ultralight fibre layer
8. Wood rail reinforcement patch
9. Biax Carbon rail patch
10. Super light EPS core

This top quality and technologically advanced high-spec Biax Carbon, has a perfect weight / stiffness ratio as a result of its very fine weave and dynamic flex. Full Biax Carbon is used on the deck and bottom of the bigger Falcons for maximum stiffness and lightest weight possible. On the smaller Falcons and on the Falcon Speed boards, it is used solely on the deck for better flex of the board in choppy conditions. When combined with the PVC sandwich technology and Glass reinforcements, the Biax / Carbon provides a balanced stiffness / flex / weight ratio.

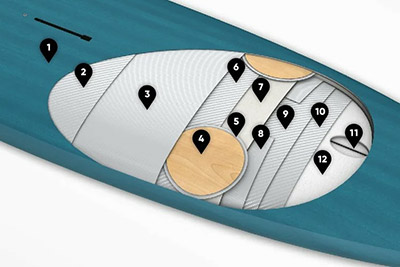

BXF - BIAX FIBRE / FULL PVC SANDWICH LIGHT FINISH TECHNOLOGY: FALCON FOIL 170

1. Light finish and weight saving graphics
2. 90° fibre layer
3. 45° Biax fibre layer
4. Extra strong heel wood patch
5. Biax Glass heel force patch
6. 90° fibre reinforcement layer
7. High density PVC sandwich core
8. Biax Glass reinforcement
9. 90° Glass reinforcement layer
10. Ultralight fibre layer
11. Biax Glass T-Stringer
12. Super light EPS core

When combined with the sandwich construction, this high quality Full Biax Glass and full PVC specification provides an optimized weight / stiffness / flex ratio.

PERFORMANCE FEATURES

• Absorbs force from impact extremely well due to 45 / 45 degree weave, and achieves maximum strength via an extra layer of fibres on top with a 90 degree weave
• Light and durable
• Full PVC construction
• Biax Glass T-Stringer for maximum stiffness
• Light weight finish

FINS OVERVIEW

FALCON FOIL TE FINS

Foil Tuttle Box / No Fin
